OEM Flexible COB LED Strip , 480pcs/meter Waterproof LED Flexible Strip

Product Categories
SHENZHEN WEERSOM OPTOELECTRONIC CO.,LTD
Contact Now

OEM Flexible COB LED Strip , 480pcs/meter Waterproof LED Flexible Strip

Brand Name : WEERSOM

Model Number : WES-FCOB-480

Certification : CE, ROHS

Place of Origin : Guangdong, China

MOQ : 5 meters

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 800,000 meters per month

Delivery Time : 8-10 work days

Packaging Details : 5 meters/reel, Antistactics bag

Product name : COB led strip

Type : Flex LED Strips

Cri (ra>) : 90

Warranty : 5 Year

Application : Decorative Lighting

Working temperature(℃) : -20 - 40

Contact Now

COB LED Waterproof LED Flexible Strip 480 LEDs


Product Introduction for COB led strip

Dotless COB LED strip lights are a new technology in LED lighting that has several advantages over traditional LED strip lights. COB stands for "Chip on Board" meaning the LED diode is packaged directly on the printed circuit board instead of creating an encapsulated LED. This enables the strip to have advantages over traditional strips:

  • Consistent and Uniform Lights with No Hot Spots on White Strips
  • Brighter Than Traditional Strips at up to 500 Lumens per Foot
  • Flexible and Field Cuttable with Cut Points Every 50mm
  • Easily Dimmable
  • Daisy Chain Two Strips Together for a Total of 32 Feet Without Repowering

Parameters

Part number

WES-FCOB-320

 WES-FCOB-480
LED Quantity

320 pcs/meter

 480 pcs/meter
PCB width

8mm/10mm

 6mm/8mm/10mm
Color temperature (CCT)

2700K 3000K
4000K 6000K
Red, Green, Blue, OEM

2700K 3000K
4000K 6000K
Red, Green, Blue, OEM
RA

90 (80 optional)

 90 (80 optional)
Wattage

8mm 12V(8W) 24V(10W)
10mm 12V(10W) 24V(10W)

6mm 12V(6W) 24V(8W)
8mm 12V(8W) 24V(10W)
10mm 12V(10W) 24V(14W)

Cutable Length

50mm

 50mm
IP Rate

IP20/IP65/IP67

 IP20/IP65/IP67


Features

  • Flexible and Field Cuttable:
    Solid Apollo's COB LED strips can be cut every two inches and offer greater body flexibility than traditional strips, thus opening the options of installing it in tighter and more complex installations.

    Dimmable:
    COB LED strips are easily dimmable with a pulse width modulation (PWM) dimmer.

    No Hot Spots:
    On traditional LED strips, LED diodes are spaced apart creating hot spots that are visible when looking at the strip. Our COB LED strips give a consistent, uniform light throughout their entire length without hot spots creating an appealing effect to the eye.

    Consistent and Uniform Lighting:
    Solid Apollo's COB LED strips have a phosphor coating across the entire length of the strip.

    Brighter Than Traditional Strips:
    COB LED strips produces less heat than traditional LED strips and output more lumens per watt. Normal high end strips can provide up to 100 lumens per watt, whereas COB LED strips can easily deliver 100 lumens or more per watt.


Application

Home, Corridors, Stairs, Trails, Windows, Hotel, Cabinet, Decoration Lighting Theatre, Club, Shopping mall, Exhibition, Bar, Dance hall, Museum and Hospital Lighting Show, Edge and Backlight Lighting

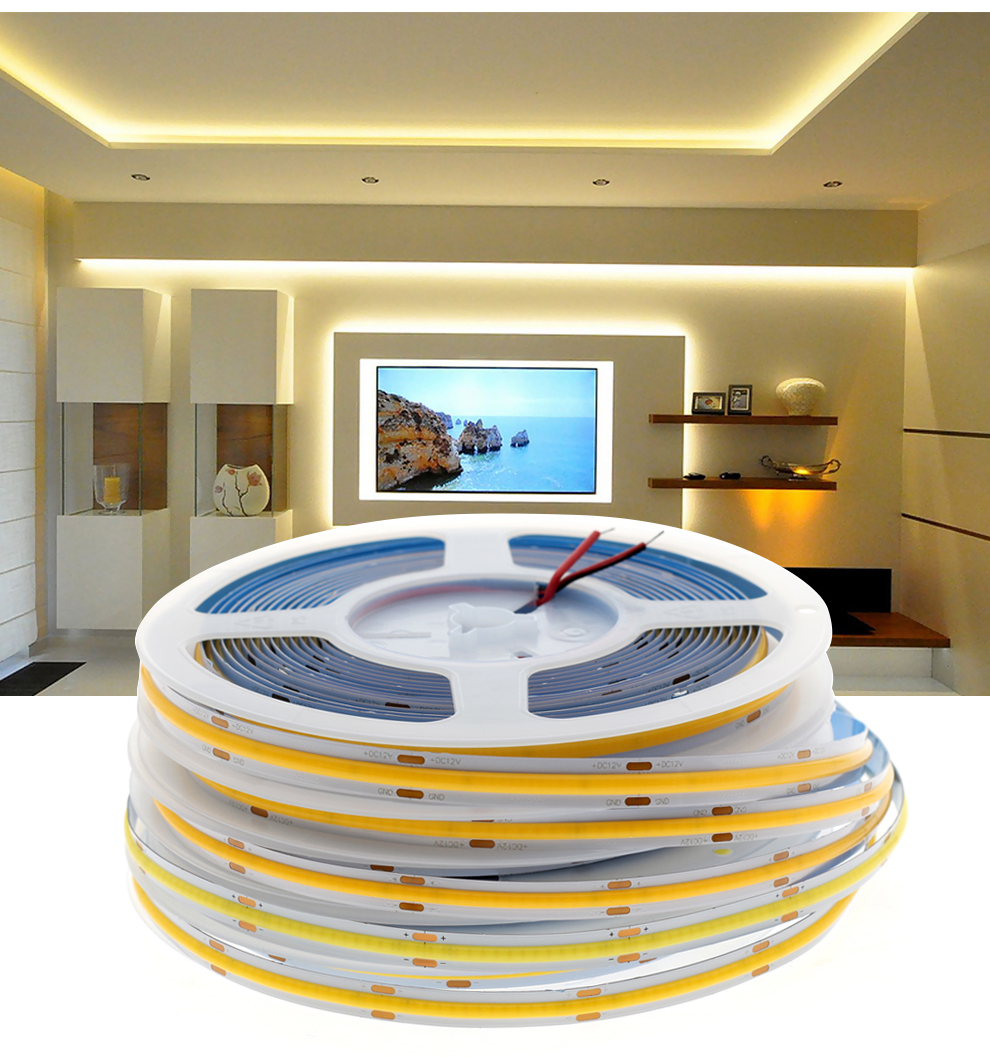

Product Photo

OEM Flexible COB LED Strip , 480pcs/meter Waterproof LED Flexible Strip
